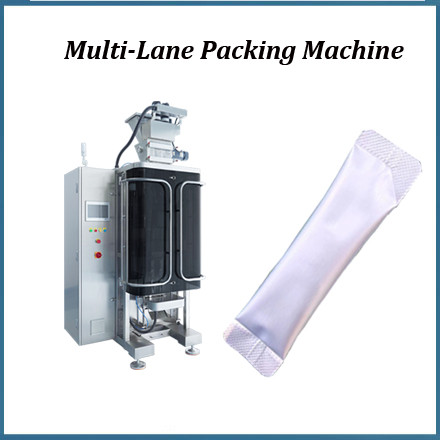

Product description：SG250 Multilane stick bag packing machine
This packing machine?is widely used for food, medicine and chemical industry for powdery materials in food, pharmaceutical and chemical products. Such as flour, coffee powder, salt, chili powder, milk powder, protein powder, spices, etc.
Machine type: | Multi-lane Packaging Machine Series |
Machine model: | HQ450-F |
Machine?name: | Multi-lane stick packing machine for powder?? |
Control System: | PLC + Touch screen?? |
Packing speed: | Max 60 bag/minutes per line |
Packing?range: | 5-40 ml per bag for powder?? |
Lanes: | 2-12 Lanes |
Packing material?& Thickness: | Heat seal-able packaging composite film materials, with thickness between 50 - 100micon, including: PE/aluminum?coating; PE film |
Diameter of film: | Inner diameter of film: 76mm / Outer diameter of film: Max 400mm |
Maximum width of film: | Max 250mm for film; and max 120mm for single bag. |
Maximum length of bag: | 180mm long / 3.8 cm wide |
?Feeding system: | Auger for powder |
Cutting way: | Flat cutting with notch / Zigzag cut / Round corner cut / Special shape cut; |
Noise Levels?of machine: | About 78dB(A) |
Power supply: | Single phase, 220V, 50HZ, 3.7KW |
Air supply and Air consumption: | 0.6-0.8Mpa; / Air consumption: 0.8m3/min |
Machine Material & Weight: | SUS304 Stainless steel for machine body & 1000KGS |
Machine dimension: | 1260*1550*2500mm (L*W*H) |
Operating environment: | Stable flat floor, waterproof with sunshade, less than 70℃ temperature |
?
