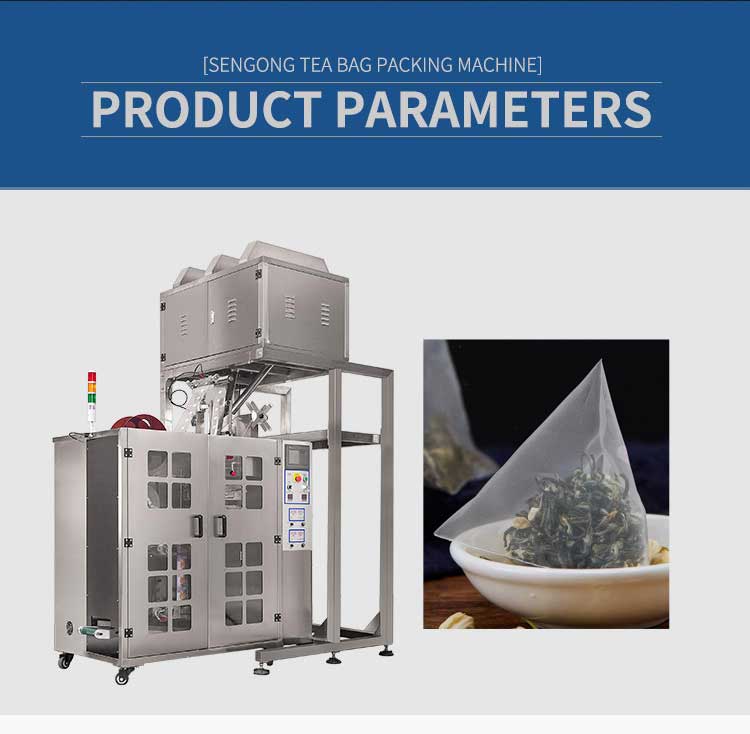

Product description：Pyramid tea bag packing machine with outer envelope from Xiamen Sengong, produce inner flat tea bag and pyramid tea bag with outer envelope!

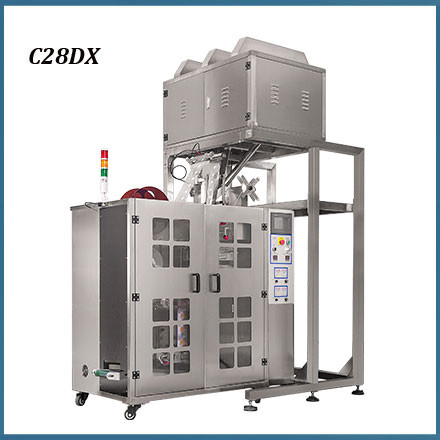

C28DX pyramid tea bag packing machine with outer envelope is suitable for both inner pyramid bag with outer envelope, and inner flat bag with outer envelope, for packing products from mall granules to big granules, such as loose leaf tea, herbal tea, health care tea, TieGuanYin, LongJing, DaMaoFeng, Rose Tea, Ginseng, etc.
Technical data | |
Type: | Tea Bag Packing Machine Series |
Product model: | C28DX |
Product name: | Automatic?Pyramid / Flat Inner Bag and Outer Bag Packing Machine |
Packing Material: | Inner bag:Nylon material imported from Japan, Non-woven fabric, 100% biodegradable transparent material, PET, PLA Outer Bag: Kraft paper/aluminum coating; PE/aluminum coating; PE film |
Filling range: | 1~10g/bag, accuracy:≦±0.1g/bag?(Depends on products) |
Filling method: | 6 weighers of Electric scale that can work independently (No. Of weighers can be customized) |
Inner Sealing length: | 53, 58, 63, 68mm |
Outer bag size: | Bag Width: 80-100mm ??Bag Length: 90-120mm Film width: 160mm, 180mm, 200mm |
Sealing method: | Inner bag: Sealing and cutting by ultrasonic Outer bag: Sealing and cutting by heat |
Bag type: | One machine can pack 4 bag type: 1.Inner pyramid bag with outer envelope 2.Inner flat bag with outer envelope 3.Single pyramid tea bag (With/without thread/tag) 4.Flat tea bag (With/without thread/tag) |
Quantity of sealing device: | 2 sets |
Packing speed: | 40-55?bags/min |
Motor Power: ? | 220V, 50HZ, 3KW |
Air supply: | ≧0.6Mpa (Can be equipped with air compressor) |
Weight: | 750KG |
Dimension: | 1500*900*2800mm(L*W*H) |
Please kindly contact manufactuer for more details, Thank you!
